PV Curve Decoded: The Core "Language" of Solar Module Testers

Some people might ask: "What exactly is a PV curve? How do you read those squiggly lines and data?" Today, we'll use plain language to fully explain these two questions.

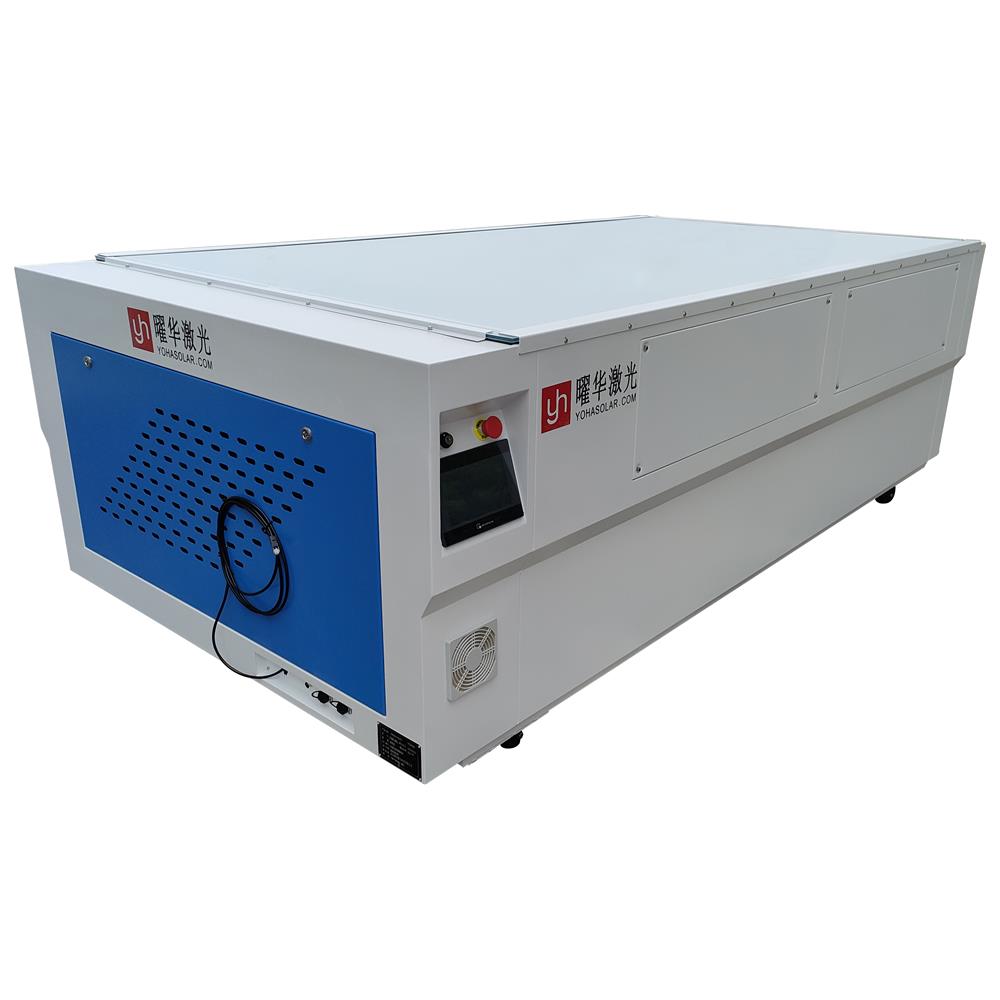

In the photovoltaic module production process, the PV curve printed by Yaohua's PV module tester is like the module's "health check report." Many newcomers often ask: "What exactly is a PV curve? How do you interpret those curves and data?" Today, we'll break it down in simple terms to clarify these two questions once and for all.

Understand the Basics: What is a PV Curve?

The "P" in a PV curve stands for Power, and the "V" stands for Voltage. Essentially, a PV curve is a "Power-Voltage relationship curve." It is generated by a PV module tester, which simulates the variation in a module's power output at different voltages, ultimately plotting a continuous curve.

Simply put, a PV module is like an "energy converter," and the PV curve records the "performance output" of this converter under different operating conditions. From the moment the module starts generating power (when the voltage is near zero) until the voltage reaches its maximum (and the power drops to zero), this curve fully illustrates the module's power generation capability limits. It serves as the core basis for evaluating the performance of a PV module.

Focus on Key Points: What to Look for in a PV Curve?
You don't need to memorize everything about reading a PV curve. By focusing on three key "anchor points," you can quickly assess the module's condition. This is also the core logic behind the data presented by a PV module tester.

1. Peak Point (Pmax): The Module's "Maximum Output"
   The highest point on the PV curve is the peak power point, and the corresponding power value (Pmax) and voltage value (Vmpp) are the most closely monitored data. For example, if the curve shows Pmax = 380W, it means the module can output a maximum of 380 watts of power under the current light and temperature conditions. If this value deviates by more than ±5% from the module's labeled power rating, it may indicate potential issues such as micro-cracks or degradation.

2. Open-Circuit Voltage Point (Voc): The Module's "Voltage Limit"
   At the far left end of the curve, where the power is zero but the voltage reaches its maximum, is the open-circuit voltage (Voc). This is the voltage when the module is not connected to a circuit and no current is flowing—similar to a battery's "no-load voltage." Under normal conditions, Voc remains within a stable range. For example, polycrystalline modules typically have a Voc between 36-40V. A sudden significant drop in Voc may indicate broken or poorly soldered cells in the module string.

3. Short-Circuit Current Point (Isc): A Key Supplementary Data Point
   While the short-circuit current (Isc) corresponds to the point on the PV curve where voltage is zero and power is zero, it is an important standalone metric reported by the tester. Isc represents the maximum current when the module is short-circuited. It primarily correlates with light intensity. Under the same environmental conditions, if a module's Isc is significantly lower than that of similar products, it may indicate insufficient light exposure to the cells or the presence of shading.

A Small Reminder: Interpret the Curve in Context
Finally, note that the values on a PV curve are influenced by light and temperature. For instance, stronger light increases Pmax and Isc, while higher temperatures slightly reduce Voc. Therefore, when analyzing the curve, always consider the environmental parameters recorded by the tester to avoid misjudging module quality due to environmental differences.

By mastering these methods, interpreting the PV curve from a PV module tester will no longer feel daunting. Though this curve may appear simple, it holds the key to understanding a module's power generation capabilities. Reading it correctly is essential for effectively managing the "power generation efficiency" of a PV power plant.
