In the increasingly competitive photovoltaic industry, product quality is the lifeline of an enterprise. The performance, reliability, and durability of every PV module leaving the production line directly impact the long-term power generation revenue of power plants and brand reputation. Therefore, the role of the module tester, as the "gatekeeper" of quality control in the PV production line, is crucial. A tester capable of meeting comprehensive inspection requirements is no longer a single power testing device but an integrated inspection platform incorporating multiple advanced functional modules. So, what core functional modules does such a tester need to ensure a comprehensive "physical examination" of modules?

I. Core Performance Evaluation Modules: Precise Electrical "Diagnosis"

This is the most fundamental and core function of the module tester, directly determining the power rating and efficiency of the module.

I-V Characteristic Curve Testing Module:

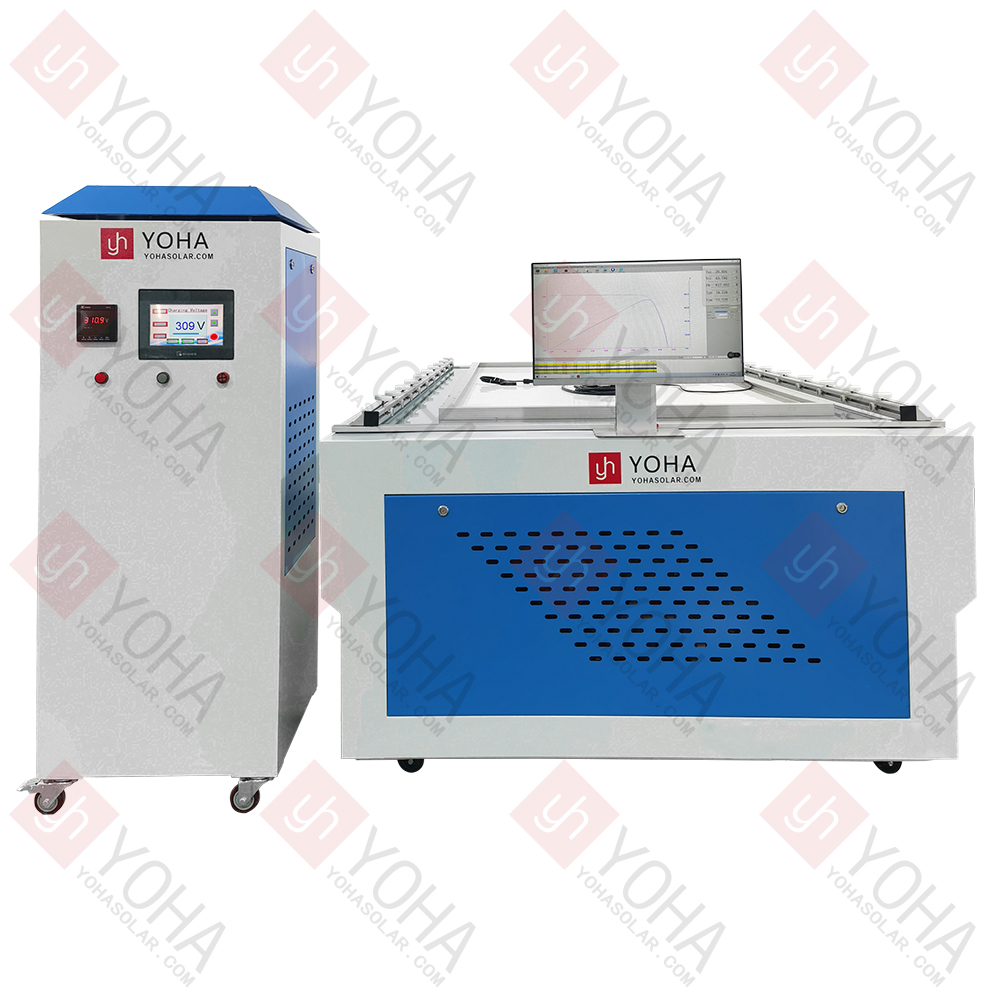

This is the heart of the tester. It uses simulated sunlight to precisely sweep the module from short-circuit to open-circuit conditions, accurately plotting the Current-Voltage curve. Key parameters are derived from this curve. High-precision I-V testing must ensure repeatability and accuracy.

Insulation Resistance & Withstand Voltage (Hipot) Test Module:
Safety is the primary prerequisite for modules. This module evaluates the insulation integrity between the internal circuit and the frame/ground. It verifies the module's ability to withstand high voltage stresses and checks for sufficient insulation, which is critical for preventing electric shock, fire hazards, and ensuring safe operation under harsh environmental conditions.

Ground Continuity Test Module:
For framed modules requiring grounding, this module verifies the reliability of the grounding path. It ensures that the resistance between the frame and the grounding point is below the safe limit specified by standards, which is a vital safety check for personnel during installation and maintenance.

II. Internal Health Diagnostic Modules: Detecting Module "Hidden Defects"

Some module defects, such as micro-cracks, cell fragments, and poor soldering, may not be apparent in initial electrical tests but severely impact long-term reliability. This requires more sophisticated internal diagnostic modules.

EL (Electroluminescence) Test Module:
Electroluminescence imaging has become indispensable in modern PV production lines. The principle involves injecting a forward current into the module, causing the cells to emit infrared light. Areas with internal defects appear as dark regions, black spots, or abnormal lines in the EL image. The EL test module can intuitively and efficiently identify these invisible internal defects, making it a powerful tool for improving module yield and preventing early-life failures.

Infrared (IR) Thermal Imaging Module:
This module operates while the module is under load or current. Defective cells or poor interconnections cause increased local resistance, leading to abnormal overheating and forming "hotspots." The thermal imaging module accurately captures these temperature anomalies, effectively identifying issues like faulty bypass diodes, shunts, process inconsistencies, and potential solder bond failures, thereby preventing power degradation and even fire risks caused by hotspot effects.

III. Environmental Reliability Verification Modules: Simulating Outdoor "Aging"

PV modules are expected to operate outdoors for 25 years or more, enduring sun, rain, extreme heat, and cold. Testers at the end of the production line need to integrate functions for verifying environmental adaptability.

Wet Leakage Current Test Module:
This module checks the insulation safety of the module under wet conditions. The module is submerged or sprayed with a water solution to simulate rain or fog. A high voltage is then applied between the internal circuit and the solution to detect whether the insulation resistance meets the standard. This test effectively exposes issues like inadequate encapsulation integrity or frame sealing defects, preventing moisture ingress that could lead to circuit corrosion and failure.

IV. Appearance & Physical Characteristic Inspection Modules: Ensuring "Internal and External Excellence"

The appearance and physical characteristics of the module also affect its power generation efficiency and lifespan.

Automatic Visual Inspection (AVI) Module:
Using high-resolution cameras and image processing algorithms, this module automatically identifies various surface defects. This significantly improves inspection efficiency and consistency, avoiding misjudgments and omissions due to human eye fatigue.

Junction Box Performance & Pull/Torsion Test Module:
The junction box is the critical node for current output. This module can verify the electrical performance of the junction box and automatically test the mechanical strength of the cable connections, ensuring they can withstand certain pull and torsion forces to prevent connection failures during transportation and installation.

V. Data Management & System Integration Module: Building the Quality "Brain"

Modern intelligent production lines require inspection equipment to be not just an "inspector" but also a "data officer."

Central Data Processing & Traceability Module:
This module is responsible for receiving, processing, and analyzing data generated by all test modules, creating a unique "quality ID" for each module. It can seamlessly integrate with Manufacturing Execution Systems, enabling real-time data upload, automatic result judgment, intelligent module sorting, and complete quality traceability. Through data analysis, it also helps process engineers identify production bottlenecks and continuously optimize the manufacturing process.

Summary

In summary, a module tester capable of meeting the comprehensive inspection requirements of a PV production line is a sophisticated system composed of six major functional modules: Electrical Performance Testing, Insulation Safety Testing, Internal Defect Diagnosis, Environmental Adaptability Verification, Automatic Visual Inspection, and Intelligent Data Management. These modules, each with its dedicated function yet working in synergy, collectively build a comprehensive quality protection network covering performance, safety, reliability, and appearance.
