Unveiling the Precision Process of Solar Panel Production

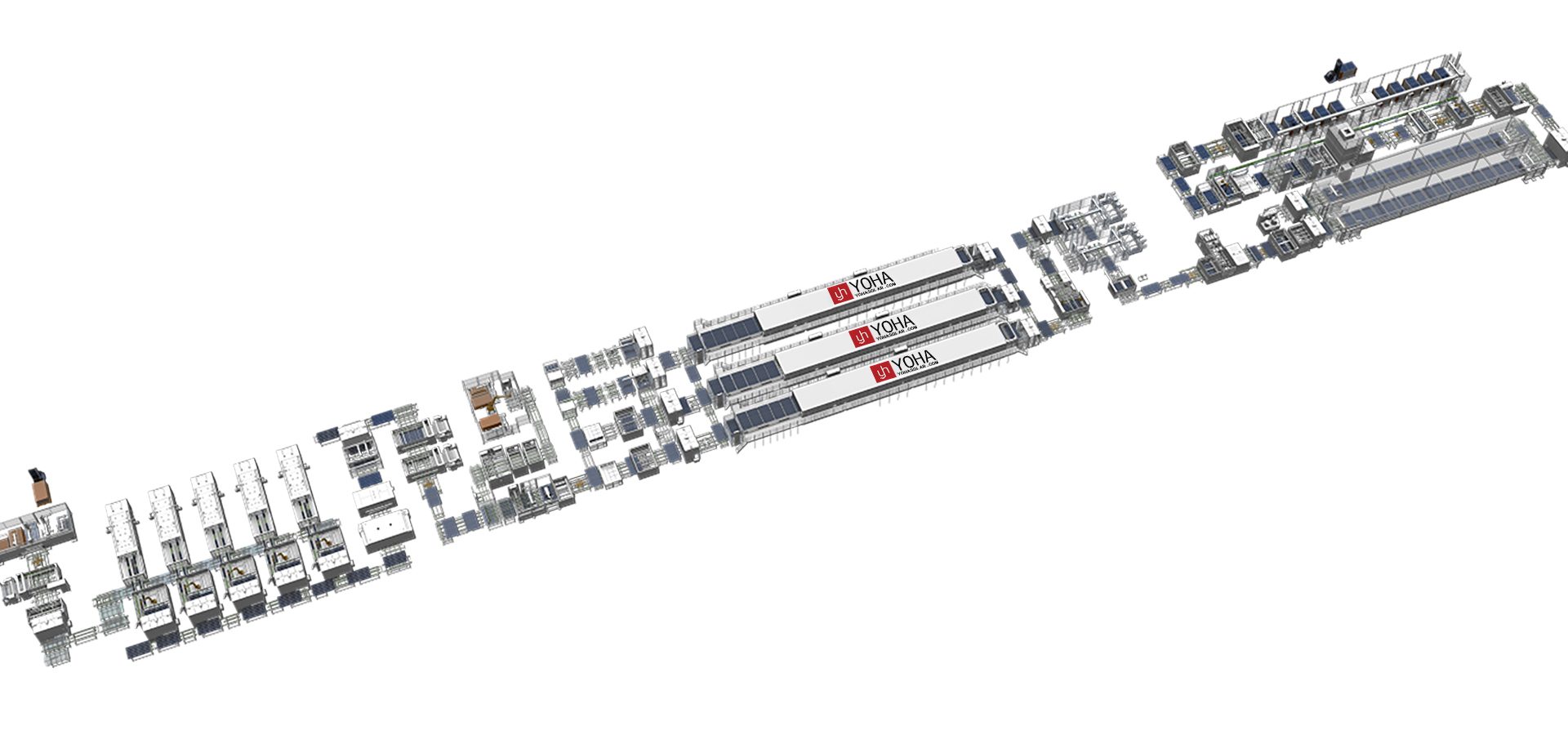

The moment sunlight pours onto the earth, solar panels spread across rooftops, fields, and deserts begin to work silently, transforming boundless sunlight into clean electricity. As a professional in the photovoltaic market, I am often asked: how does a seemingly simple blue or black panel possess such a powerful energy conversion capability? The secret lies hidden within the precise and rigorous production and manufacturing process. Today, let us step together into the PV production workshop to explore the entire journey of how a high-quality solar module is born.

The production of a solar module is essentially a process of integrating tiny "power generation units" – cell pieces – into a sturdy, durable, and efficient power generation system through a series of physical and chemical processes. This process is interlinked, with each step being crucial.

Step 1: Cell Sorting and Interconnection – Forging the Efficient "Core"

The starting point of production is the cell piece, a silicon wafer prepared through upstream processes that possesses the photovoltaic effect. The first checkpoint upon entering the workshop is "Sorting". Using specialized equipment, cells are accurately classified based on their efficiency, color, appearance, and electrical parameters (such as open-circuit voltage and short-circuit current). This ensures that all cells within the same module have highly consistent performance. Much like selecting soldiers to form a phalanx, uniformity is key to maximizing efficiency and avoiding overall power loss due to individual differences.

The sorted cells then enter the "Interconnection" stage. Traditionally, tinned copper ribbons are used to connect the busbars of the cells in series. Nowadays, more advanced "Multi-Busbar (MBB)" and "Super Multi-Busbar (SMBB)" technologies have become mainstream. These technologies use denser, thinner grid lines to collect current, reducing resistance loss and improving the module's output power and reliability. The soldering process demands extremely high standards for temperature, pressure, and speed, ensuring strong solder joints, good conductivity, and the absence of micro-cracks.

Step 2: Layup and Lamination – Constructing a Sturdy "Fortress"

The interconnected cell strings are precisely laid out according to the design onto a sheet of high-transparency tempered glass. This glass is the module's first line of defense against the external environment and must possess high light transmittance, high strength, and excellent impact resistance.

Next, one or more layers of "Ethylene-Vinyl Acetate (EVA)" or "Polyolefin Elastomer (POE)" encapsulant film are applied over the cells. POE film is increasingly used in high-power modules due to its superior moisture barrier properties and resistance to Potential Induced Degradation (PID). Subsequently, a backsheet is applied to the rear. This is typically a composite material, playing a key role in insulation, weather resistance, and moisture protection. The entire structure – glass, encapsulant, cell strings, encapsulant, backsheet – is precisely stacked like a "sandwich". This is the "Layup" process.

This "sandwich" then enters the core "Lamination" process. Inside a laminator, under vacuum conditions, heat and pressure are applied to melt the encapsulant film, firmly bonding the glass, cells, and backsheet into a single, solid unit. This process eliminates internal air bubbles, ensures the long-term structural stability and sealing of the module, and completely isolates the internal components from external moisture and dust erosion. The quality of the lamination process directly determines whether the module can operate stably for 25 years or more under harsh natural conditions.

Step 3: Framing and Junction Box Installation – Bestowing a Practical "Body"

After lamination and curing, the module is still just a "panel" and needs its "skeleton" attached. "Framing" involves fitting the module's edges with an aluminum alloy frame. The frame not only provides crucial mechanical strength for easy installation and fixation but also offers further protection to the internal structure. Silicone sealant is applied between the frame and the glass to ensure overall airtightness and waterproofing.

Simultaneously, a "Junction Box" is installed at a designated location on the back of the module. The junction box acts as the "hub" for the module's current and contains bypass diodes. When part of the module is shaded, these diodes allow current to bypass the shaded cells, preventing them from overheating and being damaged – a phenomenon known as the "hot spot effect". This is a critical design feature for ensuring the safe operation of the module. The junction box is connected to the internal busbars (brought out from the module) via soldering or plug-in methods and is sealed and secured with silicone to ensure long-term reliability.

Step 4: Cleaning and Testing – The Final "Judgment" on Quality

Before packaging, the module must undergo thorough "Cleaning" to remove any potential stains, fingerprints, or dust from the surface, ensuring a flawless appearance.

Following this comes the final test that determines its eligibility for leaving the factory – "Performance Testing". Each module is placed under a solar simulator, which replicates standard sunlight conditions, to measure its key parameters: maximum output power, open-circuit voltage, short-circuit current, fill factor, etc. Based on the test results, modules are power-rated and labeled accordingly. This ensures that every module delivered to the customer performs exactly as specified.

Finally, essential safety tests such as "Insulation Voltage Withstand Test" and "Ground Continuity Test" are conducted. These tests simulate extreme conditions to verify the module's electrical safety performance, ensuring it does not leak electricity even under high voltage and high humidity environments, thereby safeguarding the end-user and the entire PV system.

Conclusion

From fragile individual cells to a reliable module capable of withstanding wind and rain and generating electricity stably for over twenty-five years – behind this transformation lies a complex and meticulous precision manufacturing system. As a photovoltaic enterprise, we deeply understand that meticulous control over each process step and precise calibration of every parameter represent both a commitment to product quality and a repayment of customer trust. We are committed to continuously optimizing production processes and implementing strict quality control to deliver cleaner energy products that are more efficient, longer-lasting, and safer to every corner of the globe, collectively illuminating a sustainable green future.
