Unveiling the Core Manufacturing Process of Solar Photovoltaic Panels

In the era of the pursuit of green energy, solar photovoltaic panels, which directly convert sunlight into electricity, have become an increasingly common sight in our lives. However, behind this seemingly simple blue or black panel lies the exquisite craftsmanship and technological wisdom of modern industry. Behind every efficient and reliable PV panel is a manufacturing journey that pursues the ultimate in materials, precision, and quality. Today, let's go deep into the production line and explore how solar photovoltaic panels transform from raw materials into "power factories."

Step 1: From Sand to Gold – Purification of High-Purity Polysilicon

The starting point is silicon, one of the most abundant elements on Earth. But the silicon in ordinary sand is far from meeting the requirements for photovoltaic power generation. First, metallurgical processes like the carbothermic reduction method are used to extract metallurgical-grade silicon from quartz sand. Then, a more critical step follows – purification using the Siemens process or fluidized bed reactor method to convert metallurgical-grade silicon into solar-grade high-purity polysilicon. This process requires increasing the purity of silicon to over 99.9999% (commonly known as "six nines"). Any trace impurities can severely impact subsequent power conversion efficiency. These silver-grey high-purity silicon materials are the cornerstone for building the power generation capability of PV panels.

Step 2: Ingot Casting or Crystal Pulling – Laying the Foundation of the Crystal Structure

After obtaining high-purity silicon material, it diverges into two main paths depending on the technology route: multicrystalline silicon ingot casting or monocrystalline silicon crystal pulling.

• Multicrystalline Silicon Ingot Casting: Silicon material is melted in a special ingot casting furnace and, through a precisely controlled cooling process, solidified to form a multicrystalline silicon ingot composed of numerous tiny crystal grains. Its surface exhibits a unique "frost flower" pattern.

• Monocrystalline Silicon Crystal Pulling: Using the Czochralski (CZ) method, silicon material is melted in a vacuum environment. Then, a small seed crystal is inserted into the molten silicon, and by precisely controlling the temperature and pulling speed, a complete cylindrical monocrystalline silicon rod is slowly "pulled." The internal atomic arrangement of monocrystalline silicon is completely uniform, offering higher purity and photoelectric conversion efficiency, typically.

Whether silicon ingots or rods, they are then sliced into square silicon wafers, thin as cicada wings, using diamond wire cutting. This cutting technology has extremely stringent requirements on thickness, parallelism, and surface damage layer, and is key to reducing silicon material costs and ensuring cell quality.

Step 3: Elaborate Processing – The Birth of the Solar Cell

The silicon wafer itself has very weak conductivity and must undergo a series of precise chemical processes to become a true "cell" capable of generating electricity.

• Texturing: Using chemical solutions, millions of micron-sized pyramid-like or pore-like structures are etched onto the silicon wafer surface. This "textured" surface effectively traps light, significantly reducing sunlight reflection and enhancing light absorption.

• Diffusion and Junction Formation: This is the core step for forming the PN junction. In a high-temperature diffusion furnace, by introducing trace elements like phosphorus, a semiconductor layer with properties opposite to the base layer is formed on the silicon wafer surface, thereby establishing a permanent built-in electric field – the physical basis for photoelectric conversion.

• Etching and Coating: Removes the unnecessary conductive layer formed on the edges during diffusion. Subsequently, a deep blue silicon nitride anti-reflection coating is applied to the cell surface via Plasma-Enhanced Chemical Vapor Deposition (PECVD). This coating further reduces reflection loss and also passivates and protects the cell surface.

• Printing and Firing: Using precise screen-printing technology, grid line electrodes made of silver and aluminum paste are printed on the back and front of the cell. After high-temperature firing, the electrodes bond firmly with the silicon wafer, forming channels that effectively collect and conduct current.

At this point, an independent solar cell capable of converting photons into electrons, with specific voltage and current, is finally complete.

Step 4: Integration into a Panel – Building a Sturdy and Durable Power Generation Unit

Individual cells are fragile and have low output voltage. They need to be encapsulated and combined into a sturdy power generation unit.

• Stringing: Automated stringing machines use tabbing wires to connect dozens of cells precisely in series or series-parallel configuration to form cell strings, thereby increasing output voltage and power.

• Layup and Lamination: The series-connected cell strings, highly transparent EVA or POE encapsulant film, backsheet, glass, and other materials are layered in a specific order within a lamination machine. Subsequently, lamination occurs under vacuum, high temperature, and high pressure, causing these materials to fuse into a solid, sealed unit. The lamination process directly determines the module's weather resistance, insulation, and long-term reliability.

• Framing and Junction Box Installation: An aluminum alloy frame is installed onto the laminated module to increase overall mechanical strength and facilitate mounting. Simultaneously, the junction box is sealed and fixed onto the backsheet with silicone. The current generated by the cells is channeled through internal busbars into the junction box, protected by diodes, and then output.

Step 5: Final Inspection and Quality Control – Ensuring Every Watt's Promise

Before packaging and leaving the factory, every PV panel must undergo strict final inspection. This includes:

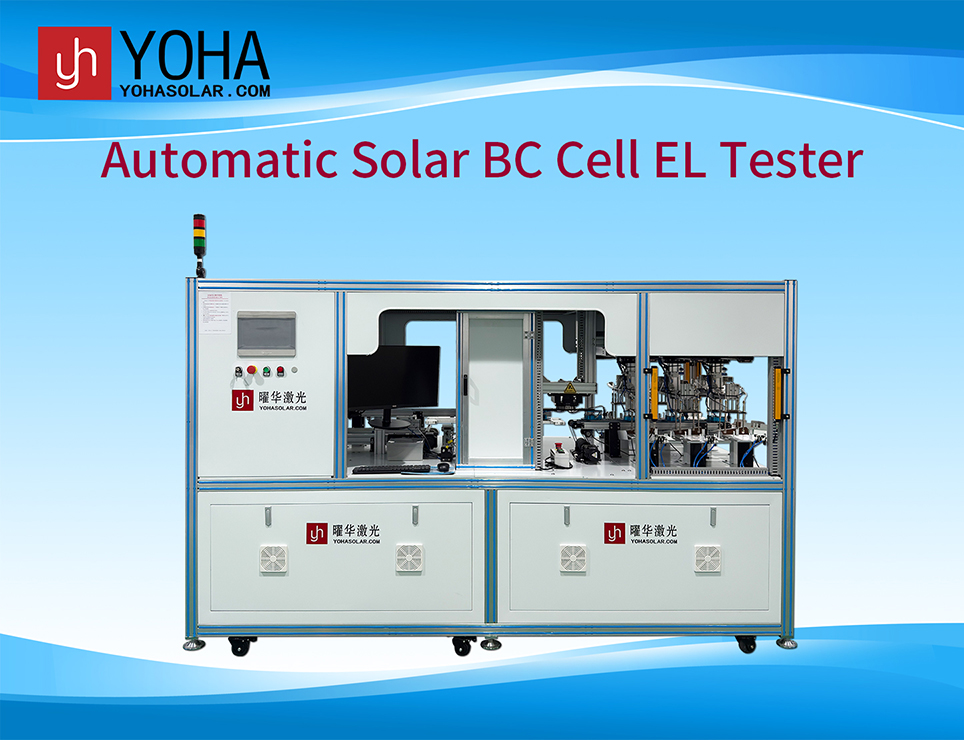

• Visual Inspection: Combines automated detection and manual re-inspection to identify any flaws like cracks, contamination, or bubbles.

• Electrical Performance Testing: Under Standard Test Conditions (STC), simulates sunlight exposure to accurately measure key parameters like peak power, open-circuit voltage, and short-circuit current, ensuring accurate power rating.

• Insulation and High-Voltage Withstand Test: Checks the electrical safety performance of the module, ensuring safe operation under various harsh environments.

Only products that fully meet all quality standards are labeled and packaged for shipment worldwide.

Conclusion

The manufacturing of solar photovoltaic panels is a high-tech industrial chain integrating materials science, semiconductor physics, precision chemistry, and automated control. From a grain of sand to a high-efficiency module capable of generating electricity reliably for over 25 years, every step of process innovation and refinement drives the PV industry towards higher efficiency, lower cost, and better reliability. Understanding the logic behind its manufacturing not only amazes us with the beauty of modern industry but also fills us with confidence in the green future borne by this piece of "blue glass" in our hands.
